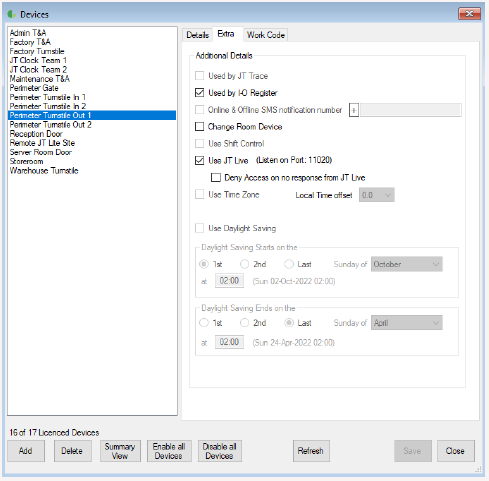

24.2 Extra
Extra
Hikvision devices need to have their password entered from this tab.
Dahua devices need to have their username and password entered from this tab.
Used by JT Trace - if the JT Trace feature is enabled, this option will be selectable. It will allow the device to be used for Trace clockings.
Used by I/O Register - if selected then the transactions from the device will be included in calculating employee In/Out status.
Online and Offline SMS notification number - If enabled in System Configuration, cell numbers to notify of status can be entered.
The Change Room Device option will become available if selected in the System Configuration. When a device is marked as a Change Room Device and Change Room Devices are active on the day program, JT will ignore clockings from all Change Room Devices which occur before the first and after the last Non Change Room Devices. You can see more about this in the Day Program section.
Use Shift Control - option to include the device in Shift Control becomes available if the module is enabled, please see the Shift Control document for more information.
Use JT Live - If using Morpho hardware, this option can be activated to allow clockings to appear in Jarrison as soon as a reader is clocked on or to facilitate anti-passback or zoning (Access Pro module).
Deny Access on no response from JT Live - If the device is being used for Access Pro purposes, this setting instructs it to not allow access if the device loses communication with JT Live. (By default the device will allow anyone through if server communication is lost.)
Use Time Zone - Checking this option will allow use of a longitudinal time zone on the reader (not to be confused with Jarrison Time’s own time zone setting).
For IP devices the JT Engine PC is considered to be at 0 and time zone settings are relative to this (not UTC-based).
Webserver device time zone settings are based on GMT/UTC.
Use Daylight Saving - Selecting this option will activate Daylight Savings on the reader. Once selected, details of when savings should be applied must be configured appropriately.
