32.1 T & A Devices

T & A Devices

In some cases T&A Devices from external access control systems need to be defined within JT. This option is not available with all Import Locations (external access control databases).

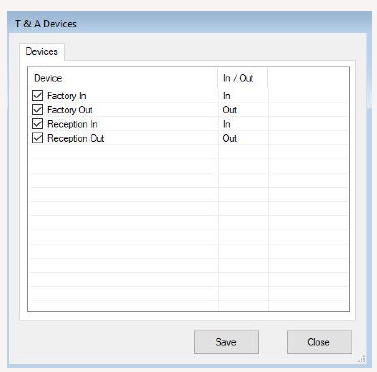

To setup the Time and Attendance terminals, click on ’Setup’, then ‘T&A Devices’. The clockings from each device selected here will be imported into JT. Each device also has the option of being set as In or Out clocking during the import. To set or change this direction you can click on the entry in the ‘In / Out’ column. In some cases you may have the option to select Device which will mark the clocking as In or Out based on the direction received from the access control system. If clocking groups are necessary, you will need to select all possible T&A Devices in this window, then setup the clocking groups as explained in the Clocking Groups section. In some cases the ‘Only Import for Access Group’ option is available and JT will only import clockings from employees who belong to the specified access group.

If Job Costing is enabled devices can also be set as job costing devices here.
