11.7 Hardware

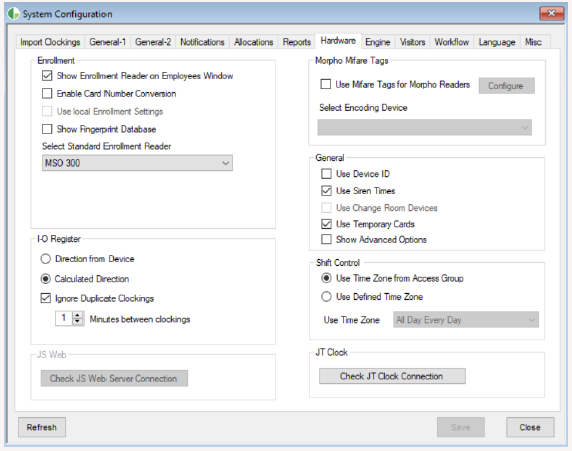

Hardware
ENROLLMENT
Show Enrollment Reader on Employees Window - if selected, the enrollment options set here will be applied to all users on JT. This will allow each user to select their own enrollment options on the Biometrics tab of the Employee Details screen, which will be saved to their local PC for future use.
Enable Card Number Conversion - some types of cards using a long-format identifying number and by selecting this option their long-format numbers can be converted for use on devices that use regular length identifiers.
Use local Enrollment Settings - if selected, JT will use the saved local settings (set with Show Enrollment Reader option temporarily selected) for each users enrollment.
Show Fingerprint Database - will allow you to select which database to send the employee to on expanded Morpho devices from the Employee Details window.
Select Standard Enrollment Reader - will allow you to select the general enrollment reader for capturing fingerprints. The Sagem MSO 300 and MSO 1300 options will allow for enrollment with an optional dongle (for better quality). The older Sagem MSO 100 always requires a dongle.
All devices in JT will be included in the selection, however in the event of no enrollment reader present the quality of the prints captured is reduced when enrolling on Sagem T&A or access control devices.
If fingerprints are enrolled directly on the reader the templates can be imported into JT from the device. Click on ‘Import’ then ‘Employees from Device’ and select which device to import from.
Morpho Hardware:
Consolidate - if selected will acquire three separate prints per finger from each person during enrollment, and combine them into one average print.
Use Verif - if selected a Verif licence must be embedded in the Sagem MSO Device or a Verif dongle must be present and the quality of the enrollment is far better. If the dongle is used then the Number of good quality fingers is enabled, and sets the number of acquisitions necessary before saving the person’s fingerprint.
Morpho Mifare Tags

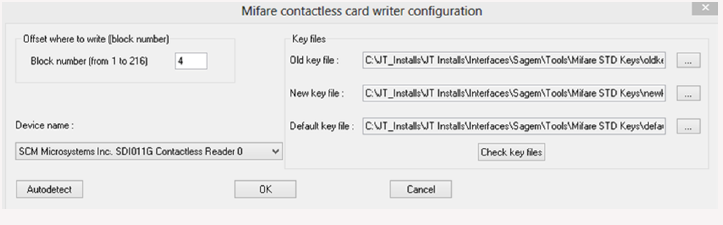

‘Use Mifare Tags for Morpho Readers’ - to implement the use of contactless (Mifare) cards with the Sagem MA120, MA520, OMA520, or Sigma readers, select the encoder that will be used. Click on ‘Configure’, leave the ‘Block Number’ as 4 and then browse for and select the keys in the ‘C:\Program Files\Jarrison Systems\Jarrison Time\Mifare STD Keys’ folder.
GENERAL:
Use Device ID - will show the Device ID field on the Employee Details screen and then send this number to the devices as opposed to the Employee Number. This function is used in environments where the device communicates to an access control system which can only accept a numeric Wiegand code, or where the device itself can only accept numeric employee codes and the employee numbers in JT need to be alphanumeric (per payroll).
Use Siren Times - will enable the use of siren times. Once enabled, schedules can be set in the Siren Times window. The schedule to use can be selected in the Devices window.
Use Change Room Devices - will activate this feature (see the Day Program section for more on this).
Use Temporary Cards - Enable issuing of temporary RFID tags (option then available from the ‘Access’ menu)
Show Advanced Options - if selected, adds more options to the Devices context menu (shown by clicking the green power bolt icon in the Devices window). The additional options will only display while this configuration screen is open.Show Advanced Options - if selected, adds more options to the Devices context menu (shown by clicking the green power bolt icon in the Devices window). The additional options will only display while this configuration screen is open.
I/O REGISTER
Direction from Device - using this method JT will determine whether a person is IN or OUT based on the direction of the device which they last clocked at. Each device which you want included in the I/O Register must be activated and set to either In or Out from the Devices window.
Calculated Direction - calculates on the basis if first clocking for the day is In then the next is Out. This uses the start of day as per the shifts, so night shift employees will also have a true In or Out status.
Ignore Duplicate Clockings - select if required. The time to be ignored between repeated clockings is set here in minutes.
JT CLOCK
Check JT Clock Connection - This button tests the connection between Jarrison and the JT Clock server (only applicable if JT Clock is enabled).
Note that Windows ports 58768 and 5277 must be open in order for JT Clock to communicate.
JT WEB
Check Web Server Connection - This button tests the connection between JT and the JS Web Server (only applicable if JS Web Server is enabled).
SHIFT CONTROL
These options are discussed in the Shift Control document.
