11.3 General-2 Options

11.3 General-2 Options

Info

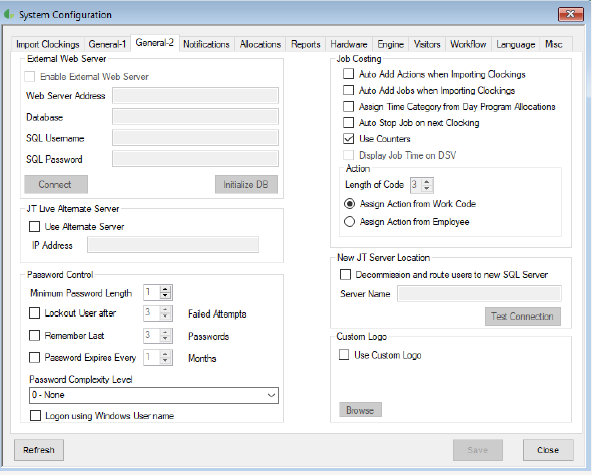

General-2 Options


Info
EXTERNAL WEB SERVER

The Web Server option in JT allows specific web-enabled devices to communicate through the web server to Jarrison Time. The Devices can be located anywhere that has an Internet connection (or GSM signal, depending on device) and it will link back into JT. Setting up this option will require several details from your service provider and relicensing. On the General-2 tab you will then need to complete some details, provided by supplier. Once the server and SQL details have been entered, click on 'Connect' to ensure that you can communicate with the web server. The ‘Initialize DB’ button will set all database records as exported.

Next the device configuration must be set.

Click on 'Access' then 'Devices' from the menu bar.

Details should be as follows:

  1. Name..........Enter a device-specific name
  2. Device Type...External Web
  3. Serial No.....Found on the device itself or from a System Information device menu option.

Further configuration changes must be made on the device itself, and these changes will depend on the type of device being connected as configuration details vary between device types. Some devices may require a firmware upgrade before being capable of working with web server, check with your supplier for further information.

Info
PASSWORD CONTROL

  1. ‘Minimum Password Length’ - controls the number of characters in the password.
  2. Lockout User After - Select to lock the user login after the set number of failed login attempts.
  3. ‘Password Expires Every’ - If the users need to change their passwords regularly you can select this option and the users will be notified when they log in. Users may not re-use the previous password.
  4. Remember Last - Check this option to enable JT to disallow users reusing the specified number of previous passwords.
  5. ‘Password Complexity Level’ - will force the users to comply with the password requirements during password changes and in the ‘Users’ window.
  6. Logon using Windows User name - Enabling the option allows users to automatically login to JT if their Windows account and Jarrison user names are the same. From ‘Users’, ‘Profiles’ the option will need to be selected for each user account it is to apply to.
Info
JOB COSTING

There are options which will only become available if Job Costing has been enabled as a feature. These options allow for counters to be enabled, the automatic adding of Actions and Jobs when importing clockings, and allocating time categories from day programs for time clocked as jobs. Please refer to the Job Costing manual for further information.

Info
JT LIVE ALTERNATE SERVER

Used with the Advanced Access Control module when a fail-over server should be configured. Enter the IP address of the secondary server to use.

Info
NEW JT SERVER LOCATION

Place a check next to ‘Decommission and route users to new SQL server’.

The Server Name field will then become available to enter the new server details.

This feature enables the migration of the JTime and log databases from a running server to a new server, without having to individually change all user PC configuration files to point to the new server. The major versions of JT on both servers must match.

The procedure is as follows, once all users are logged out of JT.

  1. Perform a complete system backup and restore it on the new SQL server. JT Manager can be used to assist with the process.
  2. Login to Jarrison on the old server.
  3. From the menu bar go to Setup, System Configuration, and then the General-2 tab.
  4. Select the box next to Decommission and route users to new SQL Server.
  5. Enter the new server’s details in the Server Name field.
  6. Click ‘Test Connection’ to check the connection is working.

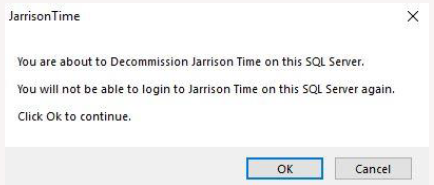

  7. After clicking on ‘OK’ a warning message as below will appear.
  8. Log out of Jarrison Time.
  9. Log in to Jarrison Time again, the following message will appear:

    After ‘OK’ is clicked Jarrison Time will connect with the new server.

Info
CUSTOM LOGO

An image may be selected to display in the credentials window when logging in, replacing the Jarrison Time logo.
